Fuel Delivery

ROTAX Fuel Lines, Fuel Pumps & Fuel Pressure Support

For ROTAX fuel pressure, delivery, vapor, contamination, carb, float, injector, or uneven-running concerns across the 912, 914, 915 iS, and 916 iS families.

What You May Notice

Fuel Problems Often Show Up as Operating Changes.

Low or unstable fuel pressure indications
Rough running, stumble, or power change
Restart, idle, or hot-operation concerns
Fuel smell, contamination, or unusual drain results
EMS warnings on injected or turbocharged engines

What It Can Involve

Carbureted and Injected Engines Need Different Context.

ROTAX 912 carb balance or float issue
Fuel pumps, filters, routing, and vapor behavior
Injector, pressure, or EMS inputs on iS engines
Fuel quality, contamination, and maintenance history
Installation details and operating conditions

Fuel-system Inspection Evidence

A tank can look serviceable from the filler and tell a different story through a borescope.

Matched before-and-after views keep contamination findings and cleaning results tied to the same inspection area. They support the maintenance record; they do not replace fuel-system review.

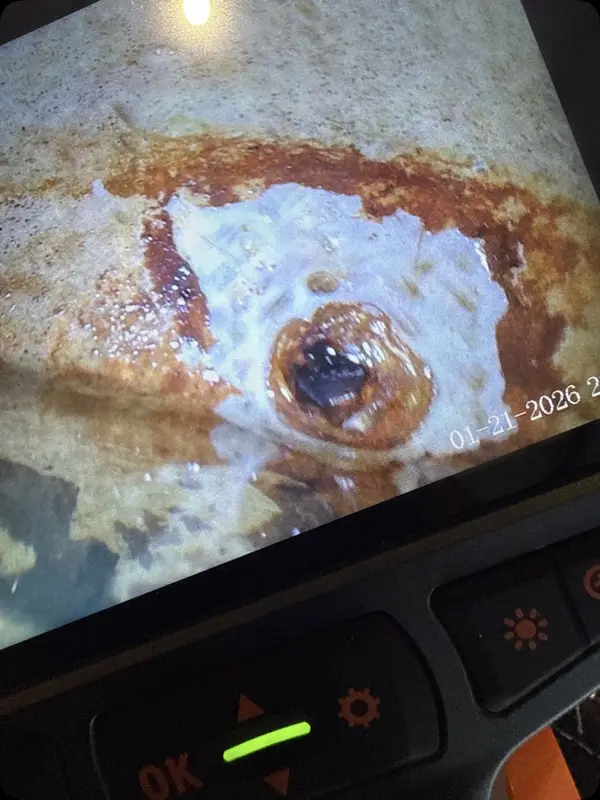

Borescope view showing contamination inside an aircraft wing fuel tank — **Before: contamination visible**The internal condition is recorded before cleaning and follow-up inspection.

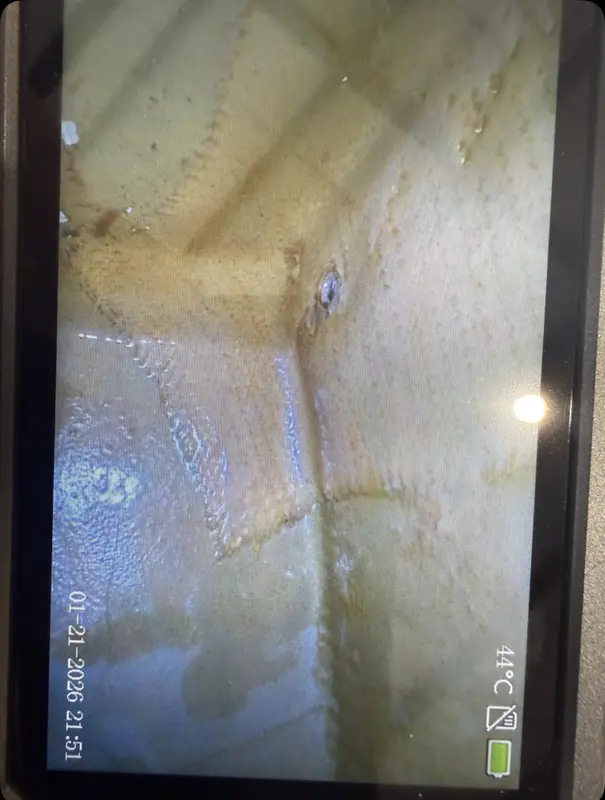

Follow-up borescope view of a clean aircraft wing fuel tank — **After: follow-up view**The same type of internal view documents the result and remaining condition.

Fuel Delivery Review Focus

Pressure is Only Useful with Context.

Fuel pressure readings should be tied to engine model, phase of flight, temperature, pump status, fuel type, warning messages, and whether the symptom appears during start, taxi, climb, cruise, or hot operation. Carbureted and injected ROTAX engines use different review paths.

Installation Context

Routing and History Can Create the Complaint.

Pump configuration, filters, heat exposure, hose age, fuel quality, contamination, float or injector history, and recent work can all shape fuel-system symptoms. The review separates fuel delivery evidence from ignition, sensor, or EMS conclusions before the next step is recommended.

What Information Helps First

Send the Symptom and When It Appears.

N-numberAircraft locationEngine modelFuel pressure readingsFuel typePhase of flightFault messagesRecent fuel-system work

Start With the Facts

Send When the Fuel-pressure Symptom Appears.

Fuel-pressure symptoms need aircraft configuration, operating condition, pump behavior, fuel type, readings, and when the issue appears.

Send Aircraft Details
